CIP User Manual
Revision History
Revision No |
Date |
Change description |
Author |
Reviewed by |
|---|---|---|---|---|
001 |
2021-02-12 |
Draft document for user manual |
Shivanand Kunijadar |
|
002 |
2023-10-04 |
Added more information about CIP Kernel and some meta-data features like Secure boot, Swupdate etc. |
Sai Ashrith |
1. Overview
This document briefly explains all the components in CIP such as its core components, Kernel, current reference hardware which supports CIP reference images, additionally provided features such as secure boot, Data encryption at rest etc.
2. Civil Infrastructure Platform
The Civil Infrastructure Platform (“CIP”) is a collaborative, open source project hosted by the Linux Foundation. The CIP project is focused on establishing an open source “base layer” of industrial grade software to enable the use and implementation of software building blocks in civil infrastructure projects. Currently, civil infrastructure systems are built from the ground up, with little re- use of existing software building blocks.
The CIP project intends to create reusable building blocks that meet the safety, reliability and other requirements of industrial and civil infrastructure. CIP works closely with the upstream community and does not aim to create a new Linux distribution.
Reference Hardware
The CIP project has selected a number of hardware platforms to be used as reference platforms for the project’s software.
Refer the below link for CIP project reference hardwares https://wiki.linuxfoundation.org/civilinfrastructureplatform/ciptesting/cipreferencehardware
Open Source Base Layer (OSBL)
OSBL is a set of industrial grade core open source software components, tools and methods. It is composed of the CIP kernel source code, and the CIP Core source packages.
CIP Kernel
CIP supports and maintains the kernel for a long time (+10 years).
Refer the below link for CIP kernel maintenance https://wiki.linuxfoundation.org/civilinfrastructureplatform/cipkernelmaintenance
Currently supported CIP SLTS kernels
The current released CIP kernels are as follows.
Version |
Maintainer(s) |
First Release |
Projected EOL |
|---|---|---|---|
SLTS v6.1 |
Nobuhiro Iwamatsu & Pavel Machek |
2023-07-14 |
2033-08 |
SLTS v6.1-rt |
Pavel Machek |
2023-07-16 |
2033-08 |
SLTS v5.10 |
Nobuhiro Iwamatsu & Pavel Machek |
2021-12-05 |
2031-01 |
SLTS v5.10-rt |
Pavel Machek |
2021-12-08 |
2031-01 |
SLTS v4.19 |
Nobuhiro Iwamatsu & Pavel Machek |
2019-01-11 |
2029-01 |
SLTS v4.19-rt |
Pavel Machek |
2019-01-11 |
2029-01 |
SLTS v4.4 |
Nobuhiro Iwamatsu & Pavel Machek |
2017-01-17 |
2027-01 |
SLTS v4.4-rt |
Pavel Machek |
2017-11-16 |
2027-01 |
CIP core
CIP core provides example file system images using available build and image generation tools. It focuses on user land software and tools. Currently, CIP is using meta-debian for Deby, and ISAR for isar-cip-core.

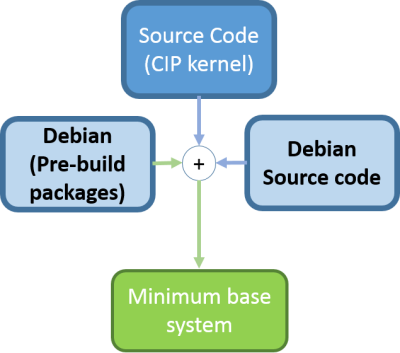

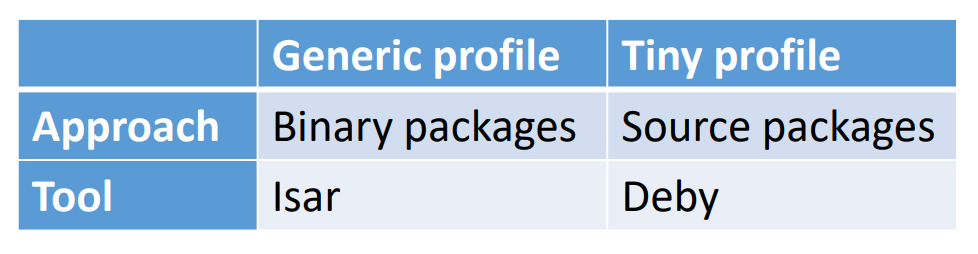

CIP core has two profiles:
The tiny profile is built from Debian source code and is useful for devices with storage restrictions, extreme performance and flexibility requirements, and low-complexity applications.
The generic profile is built from Debian binary packages and covers devices that require more functionality, have less performance and flexibility requirements, and more storage.
Tiny profile(Deby)

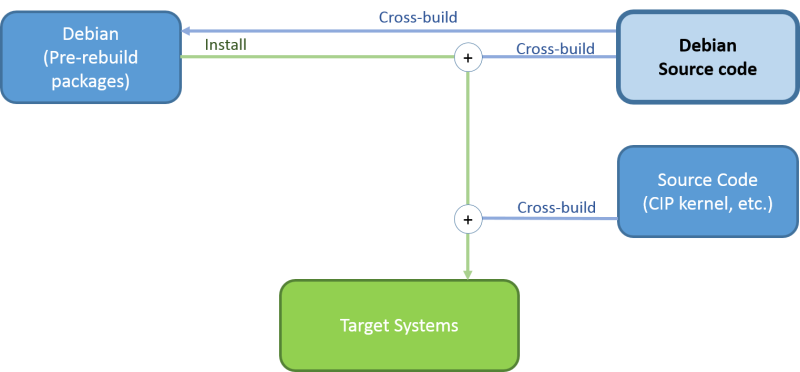

Deby is built with poky and meta-debian, a layer for the poky build system that allows cross-building file system images from Debian source packages. Deby does not use Yocto/OE source code.
Refer Deby CIP source repository at https://gitlab.com/cip-project/cip-core/deby
Generic Profile (isar-cip-core)

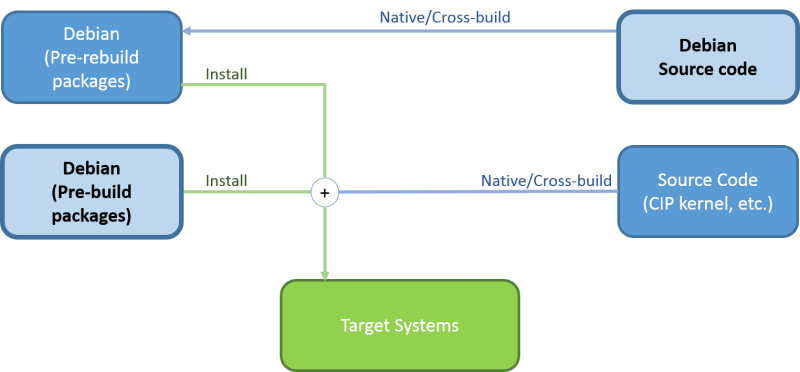

ISAR uses bitbake to generate the file system image by reusing Debian binaries and rebuilding packages that need modifications for the target board.
Refer ISAR CIP source repository at https://gitlab.com/cip-project/cip-core/isar-cip-core
Secure boot feature
CIP aims to provide integrity check of the image during boot using the Secure boot mechanism. Necessary keys and certificates can be manually generated or can be directly used from the meta-data(For ex: snakeoil keys) to sign and verify the signatures during boot process.
Currently the Secure boot design is not uniform for all the supported architectures. More detailed information about Secure boot design in CIP is available in this manual documented in isar-cip-core.
Package list
The list of CIP Core packages and the process to add or remove packages is described here.
How to Create CIP Images
ISAR CIP Core
Deby CIP Core
Default User Accounts
Default user account is root.
Porting CIP for New Hardware
TBD
CIP Testing
CIP uses B@D (Board at Desk) to run automated testing on local Beaglebone Black or Renesas RZ/G1M iwg20m platform.
CIP’s centralised testing can run tests without having local access to a platform and it is useful as list of reference platforms grows.
CIP also uses Continuous Integration (CI) testing to automatically test CIP software on CIP hardware.
The block diagram below provides an overview of CIP’s centralised test infrastructure.
LAVA Testing
CIP have set up their own instance of LAVA (Linaro Automated Validation Architecture). LAVA is a continuous integration system for deploying operating systems onto physical and virtual hardware for running tests.
Kernel CI Testing
yet to update
CIP Core Testing
yet to update
CIP Software Updates
CIP aims to provide super long term support and it is important for CIP to have a reference software update mechanism.
Current CIP software update uses Hawkbit server to store the swupdate related files. Client uses SWUpdate and librsync to communicate with Hawkbit.
It supports the following functions
Image types (You have to select 1 type) - raw update - binary delta update using librsync
Security options (You can enable both of them at the same time) - signed update - encrypted update
CIP System Monitoring
Yet to update
Monitoring System Logs
IPS & IDS Component Logs
Password policies
Expected password strength is pre-configured in the PAM configuration file in the security image according to the following rules.
Considering there are four character classes (uppercase, lowercase, digits & special characters), the user is not allowed to set passwords with only one, two or three character classes.
Setting passphrases is not allowed because there is no minimum length restriction.
Minimum length of the password should be eight and it should include all four character classes.
These password strength policies apply to all the users (including root user) in the system.
CIP security has default security configuration policies mentioned here. This includes default password policies as well. However, CIP users are suggested to customize security configuration policies based on their requirements. Password expiry date can be configured using PASS_MAX_DAYS variable in /etc/login.defs file.
